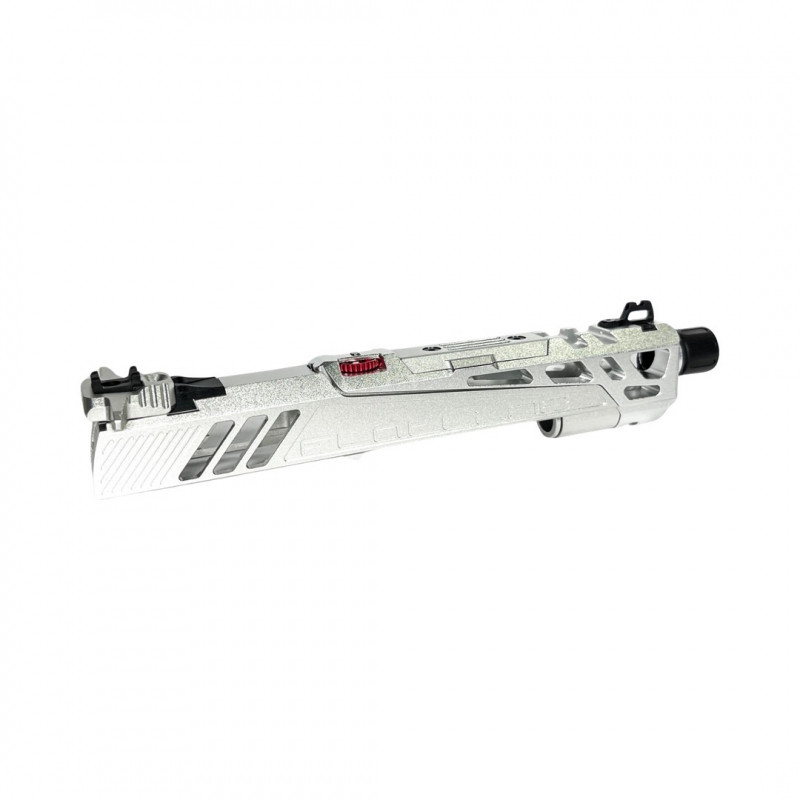

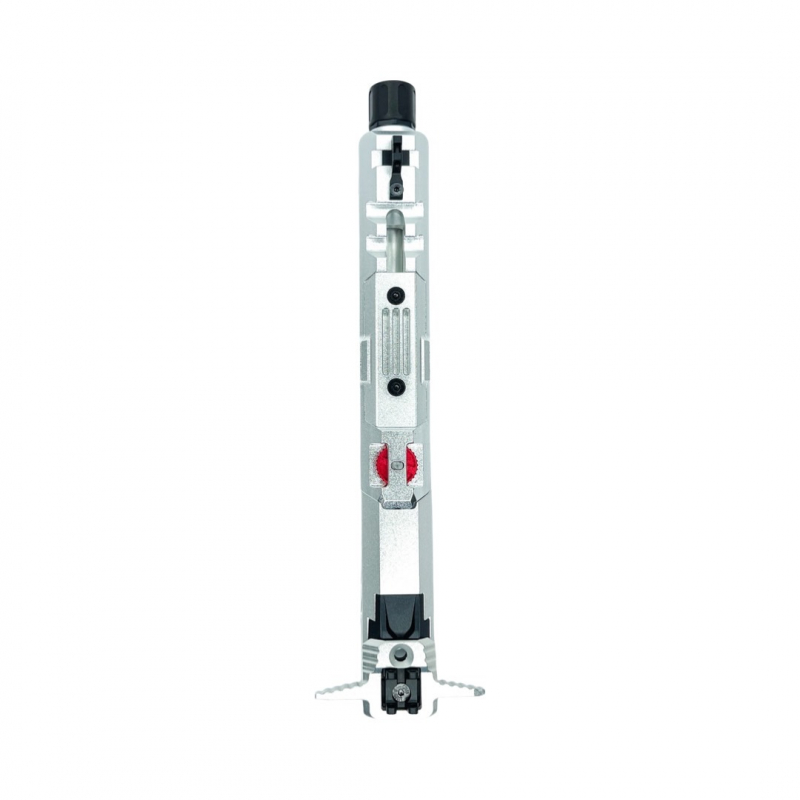

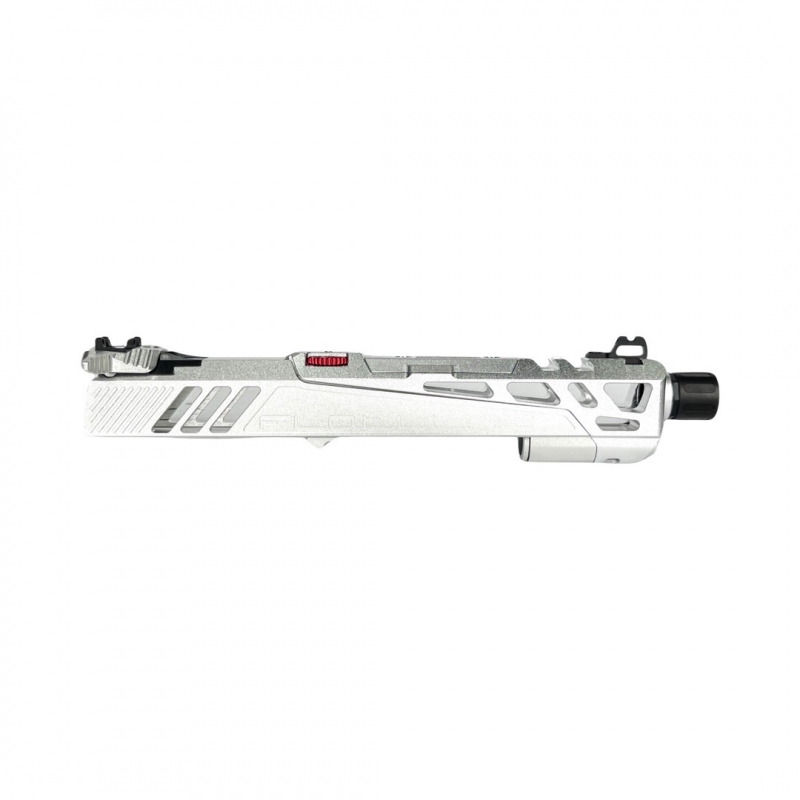

CTM CNC aluminum slide Flatline Split slide TM Hi-capa 5.1 - Silver

Take the performance of your GBB gas pistol Hi-Capa to the next level with CTM TAC's Flatline Split Slide (Split Slide) because this is a game-changer!
The slide is made from highly durable 6061 aluminum with precise CNC machining and features a split-slide design with a modification for a fixed outer barrel (non-recoil).
The slide itself has lightening cuts and weighs only 41.5 g, making it one of the lightest slides on the market (low weight = faster shooting, higher gas efficiency)
It comes equipped with a TDC system for vertical pressure on the hop-up rubber, ensuring impressive accuracy and allowing easy hop-up adjustment without removing the slide.

What makes the Flatline slide the best choice for Hi-Capa pistols?

• High-precision CNC machining from 6061 aluminum.
• Split-Slide and design with a fixed outer barrel.
• TDC wheel for easy and precise hop-up adjustment, even in gloves during the game.
• Removable ambidextrous slide cocking handles.
• Integrated mounting plate for optics.
• 11mm thread with a 14mm adapter for flashlights and other muzzle devices.
• Compatible with the original Tokyo Marui 5.1 / 4.3 center frame and CNC center frames from other manufacturers according to the TM (Middle Frame) standard.
• CNC sights with fiber optics.
• Includes a short stroke kit for faster and more responsive recoil management. (Short stroke pads must always be installed together with the Flat Line slide).
• Includes an enhanced 180% nozzle spring for smoother feeding.

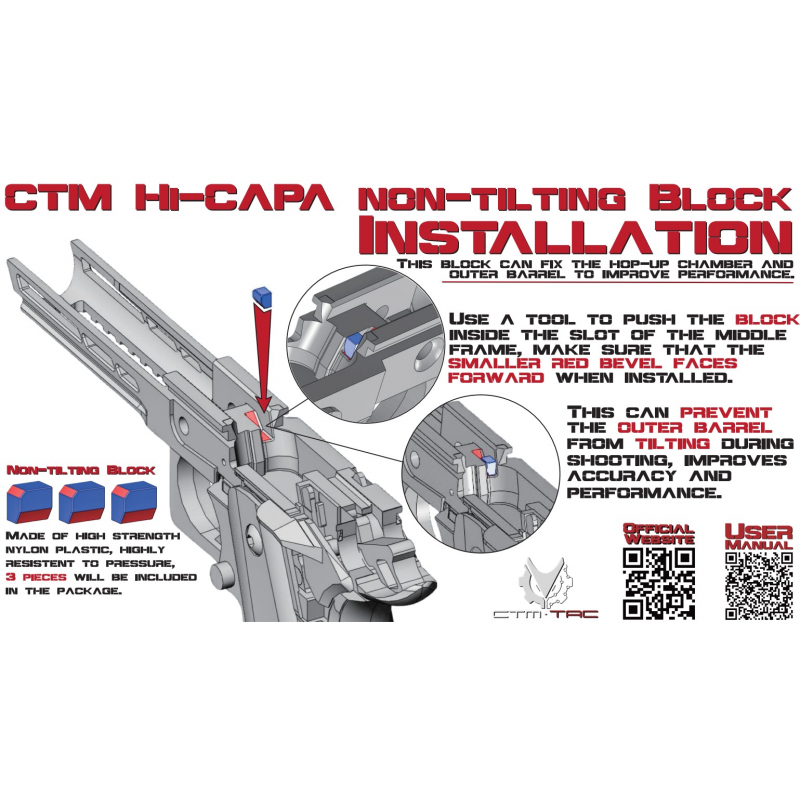

• Non-slip block design prevents external barrel vibrations.
• 200% WOW factor.

On the slide, you will also find ambidextrous slide cocking handles, providing additional comfort during reloading for both left-handed and right-handed shooters, and which can be easily detached.
It is also compatible with TM standard Hi-Capa sights, giving players various options and combinations of preferred sights. Sights are also included in the package.
The top of the slide has an integrated plate for mounting a red dot sight, allowing precise aiming even in the most demanding situations.
The manufacturer recommends disabling the slide catch function and using the Short Stroke Kit for faster operation and pistol response, as well as CTM reinforced nozzle spring 180%.
The exclusive design of the Fixed (non-recoil) outer barrel can enhance accuracy and performance by firmly connecting the hop-up chamber and the outer barrel (non-recoil outer barrel is not included in the package, suitable Fixed barrels are 5KU, NineBall, LayLax, or Begadi).
The Flatline Split-Slide is also ready for installing tracer units (Tracer), as it features an 11mm CW external thread, and in the package, you will find a 14mm CCW adapter for installing tracer units directly on the slide.
In short, the CTM Flatline Split-Slide for Tokyo Marui Hi-Capa 5.1 is the ultimate choice for anyone seeking unbeatable accuracy, agility, and reliability for their Hi-Capa pistol.

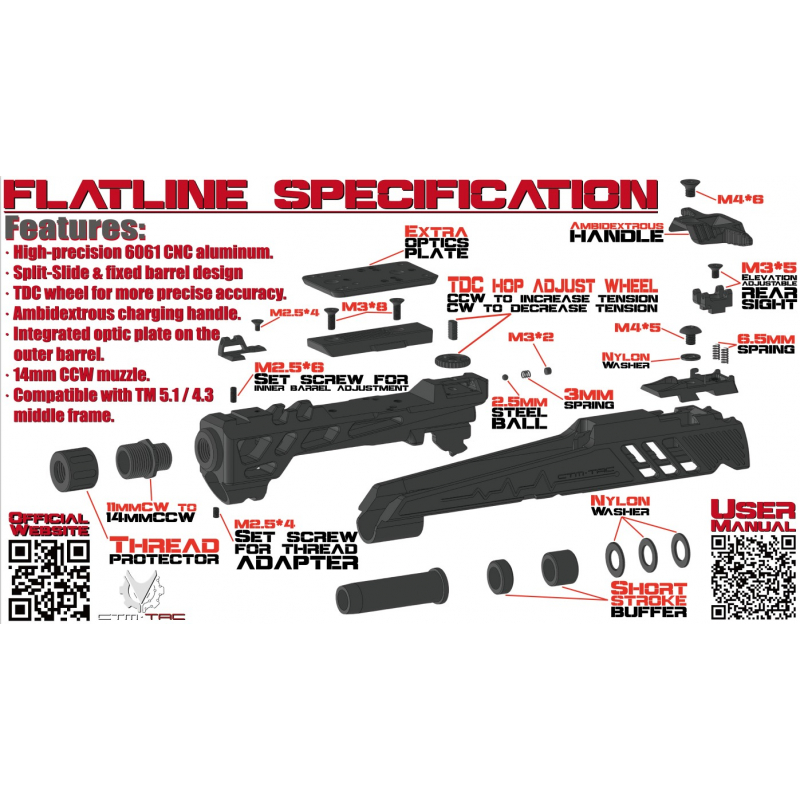

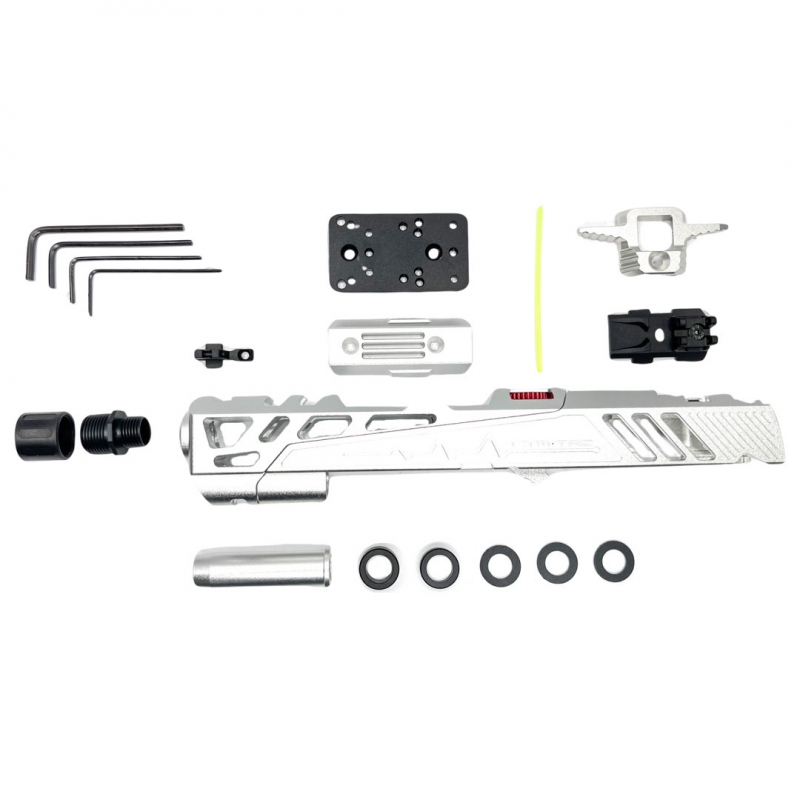

Package Contents (list of parts including screws for installation):

• CNC external thread 11mm CW (left-hand thread)
• CNC 11mm CW to 14mm CCW thread adapter (M2x54 mm screw)
• CNC protective cover for the red dot sight mounting plate
• CNC front sight (M2x54 and M2x58 mm screws)
• CNC TDC HOP adjustment wheel (tensioning screw, steel ball 2.5mm, spring 3mm, M3x2mm screw, CNC cover for TDC wheel, 2x M3x8 mm screws)
• CNC elevated mounting plate for optics (2x M3x10 mm spare screws for the red dot sight)
• CNC Steel guide for the recoil spring (Guide Rod Plug)
• CNC Flatline Split Slide
• CNC mounting kit for the rear sight (CNC adjustable rear sight, M3x5 mm screw for height adjustment, 2x spring 6.5mm, M4x5 mm screw with nylon washer (use when installing the Short Stroke Kit)
• CNC ambidextrous slide cocking handles (M4x6mm screw)
• Non-slip block for the external barrel
• 180% reinforced nozzle spring
• Optical fiber 2x60mm
• CNC Short Stroke pad 5mm
• CNC Short Stroke pad 10mm
• 3x Nylon Short Stroke pad 1mm
• Allen key M1.27
• Allen key M1.5
• Allen key M2
• Allen key M2.5
• Manual

Installation Guide

Manufacturer's Notes:

When installing the CNC Flatline slide, it is always necessary to install Short Stroke pads to prevent scratching the slide. It is advisable to install the enhanced 180% nozzle return spring with them (everything is included in the package).

CTM TAC

CTM TAC is an innovative company based in Zhubei, Hsinchu County, Taiwan, specializing in manufacturing and designing equipment, parts for the airsoft community, and Speedsoft players. Their philosophy is that every customer's opinion and feedback are crucial to them. They carefully evaluate all feedback and strive to constantly improve to optimize their products according to their customers' needs. They focus on designing products for airsoft and competitive GBB pistols, with each product created with their users in mind.
In addition to producing their own products, they also welcome unique and new ideas from you players. They are happy to assist you throughout the manufacturing process and can turn your ideas into reality thanks to their extensive knowledge of CNC machining and plastic injection techniques. If you are interested in their services, do not hesitate to contact them!
We are their exclusive partner for the Czech Republic, Anareus - your friend with benefits!
