Clicker Magnetic Trigger Resistance for Perun V2 Hybrid

Magnetic Trigger Resistance Clicker by Perun for Hybrid V2 Processor Units

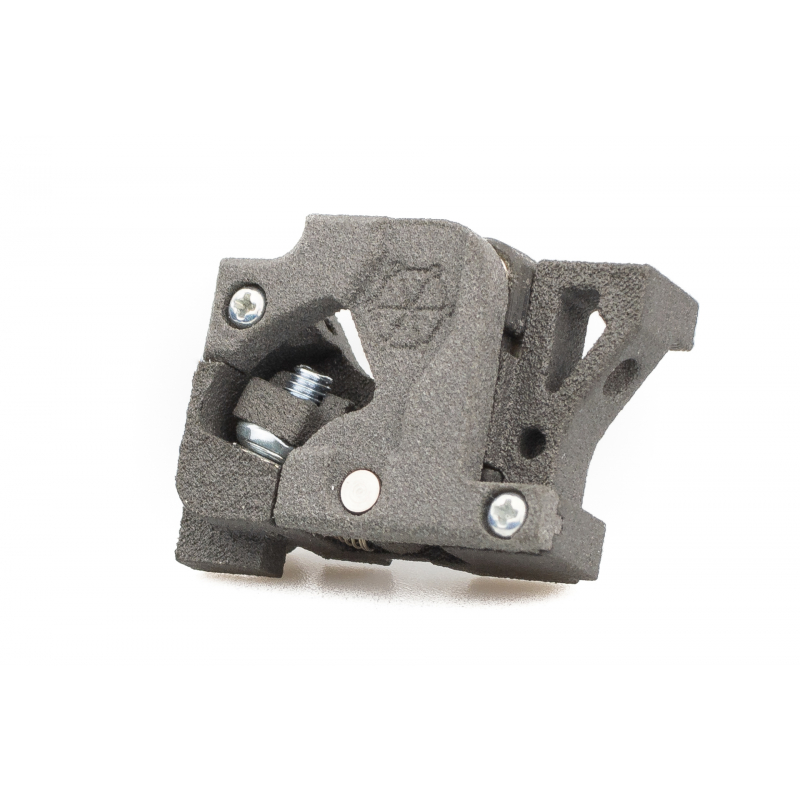

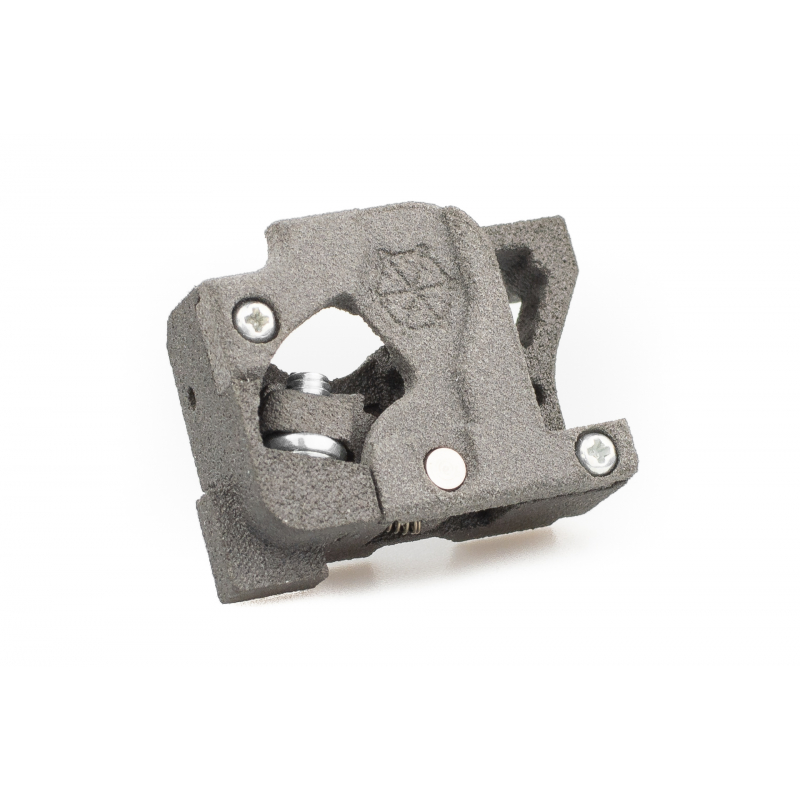

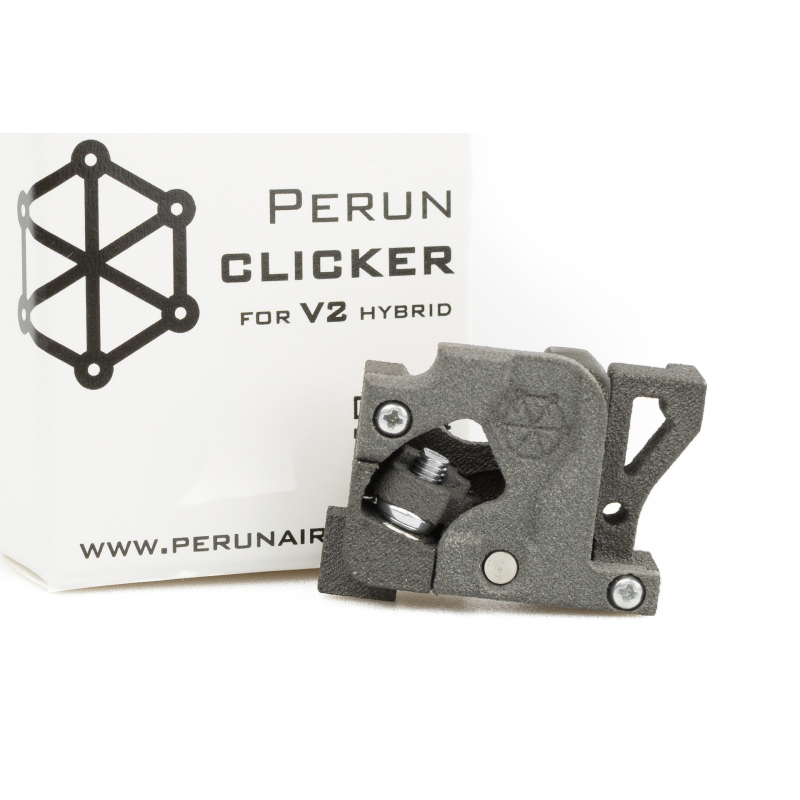

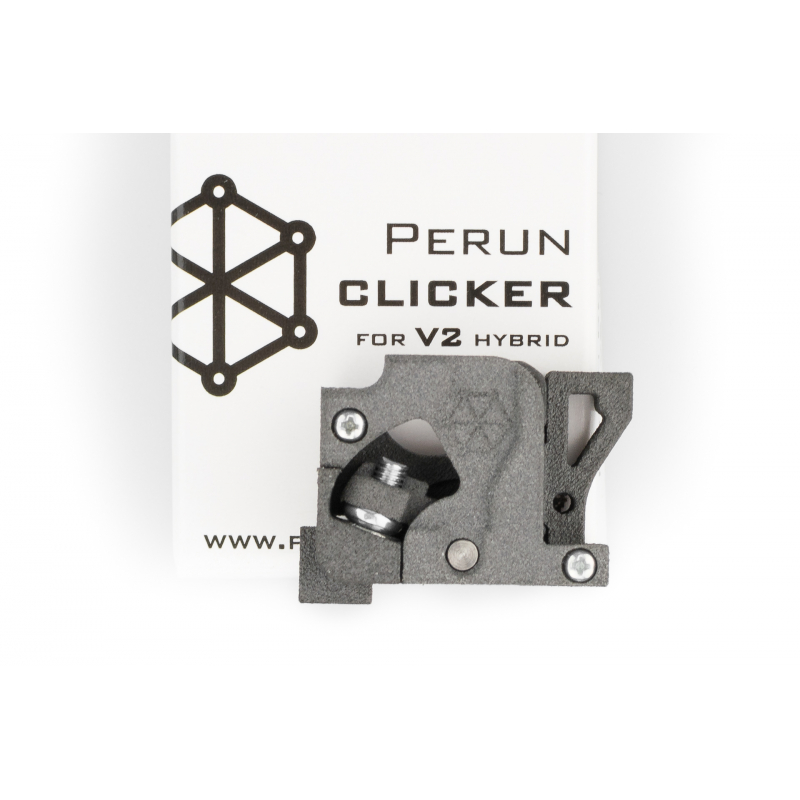

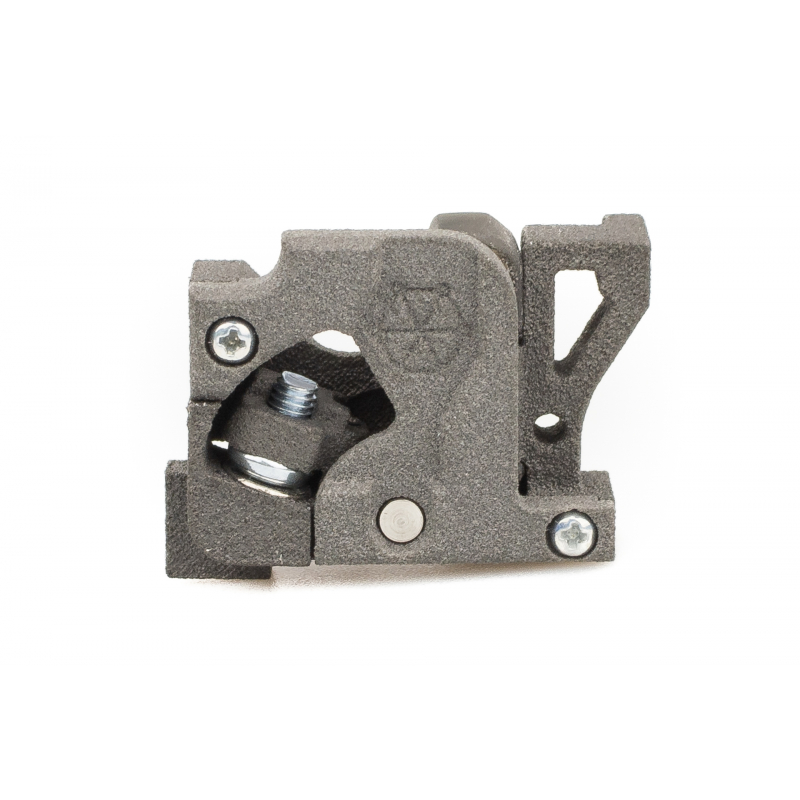

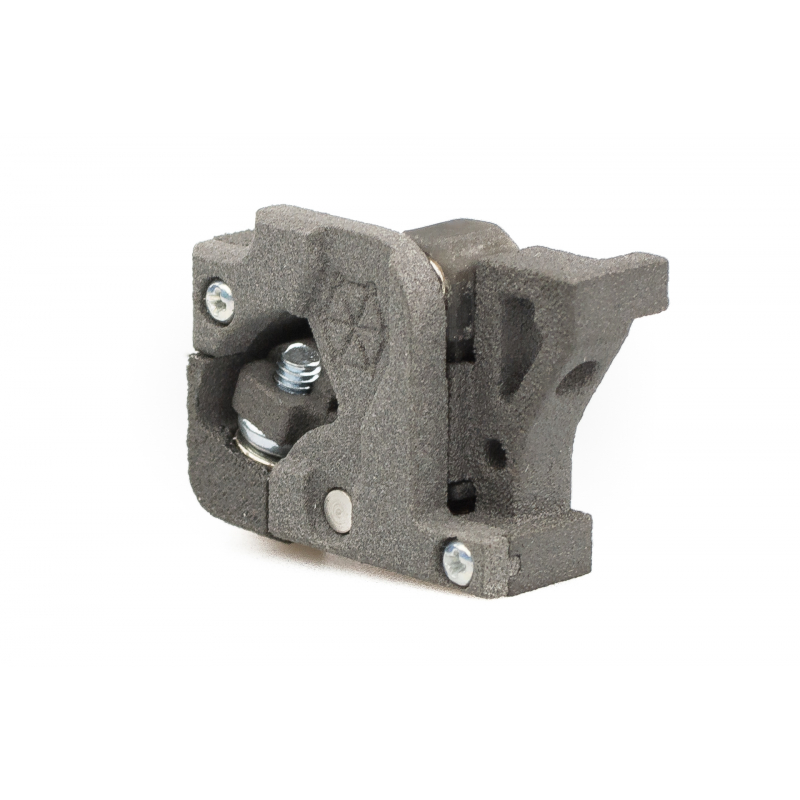

Magnetic Trigger Resistance Clicker is an accessory designed for use with Perun V2 Hybrid processor units. This product provides a realistic trigger resistance similar to that of real firearms, making it ideal for those who seek more than just shooting from their airsoft gun.

How does the Clicker work?

Clicker uses a magnet and a lever to simulate a so-called wall, a method that reduces possible wear on parts (as happens with spring-based trigger resistance simulations) and offers an unparalleled feeling of resistance, break, and trigger reset.
When the trigger is pulled, the metal part detaches from the magnet, with which it is in contact at rest. Because the magnetic field strength decreases rapidly with distance, the result is a relatively sharp break.
The break force is increased using a lever. When released, an audible trigger reset occurs as the metal part gets very close to the magnet and immediately attaches to it.

Installation and Adjustment

1. Installation

To install the Clicker, simply remove the V2 Hybrid magnet holder from the trigger and the mechanical safety lock from the gearbox.
Insert the Clicker into the gearbox.
There may be some resistance during the assembly of both gearbox halves as the Clicker must remain absolutely still inside the shell to provide a pleasant trigger pull. Therefore, it is designed to fit as tightly as possible within the gearbox space.

2. Break Force Adjustment

The trigger break force can only be adjusted with the gearbox open. This is done using a small screw inside the lever. Turning the screw to the right decreases the break force, turning it to the left increases it. The Clicker is delivered with the highest possible break force by default, and the screw is completely retracted.

3. Pre-travel

Pre-travel is the part of the trigger movement with low resistance before encountering the wall. With most combinations of triggers (especially stock ones) and gearbox shells, there will be several millimeters of pre-travel that must be taken up before the wall is faced. During pre-travel, the magnet responsible for triggering a shot does not move, so only overcoming the wall will result in a shot.
Pre-travel is present in the triggers of many real firearms.
If you want to limit or remove pre-travel, adjust the trigger so that it touches the Clicker at rest (but does not push on it). This can be done using screws in adjustable triggers or adding material under the trigger stop near the trigger axle.
It is not recommended to add material to the surface directly in contact with the Clicker. If the trigger presses on the Clicker at rest, the break force will be weaker.
Using the trigger spring with the Clicker is optional, but if there is a lot of pre-travel in the gearbox, the spring is necessary to keep the trigger from hanging loosely.
When the break is set softer, the trigger feel will be much nicer.

4. Perun V2 Hybrid Trigger Sensitivity Adjustment

After installing the Clicker into the gearbox, the trigger sensitivity must be set to level 5 for both fire selector positions (single, auto), otherwise the trigger pull will not be registered.
In some cases, especially with triggers with adjustable travel, it may be necessary to change the sensitivity level to 4, otherwise a shot will be fired before overcoming the wall.

Compatibility

With triggers:
A&K, Classic Army, G&P, Maxx, P&J, Retro Arms, SHS, and potentially others not yet tested.

With gearboxes:
A&K, Bolt, Classic Army, King Arms, G&G, G&P, P&J, Retro Arms, Specna Arms, SRC, VFC.

The Krytac gearbox is compatible, but the Clicker blocks the piston release mechanism. The Clicker may need to be slightly modified (trimmed) to allow the piston release to function.

Some Cyma and DE gearboxes require grinding in the trigger lock area on the upper (right) half of the gearbox shell.

The Clicker fits into the KWA 2GX gearbox, but it may not function properly unless modified.

Package Contents

• V2 Clicker Unit

English Manual

The original manual can be downloaded here: https://www.perunairsoft.pl/clicker.pdf.
