FMA AN/PEQ15 LA5-C ATPIAL Version (IR Flashlight, Red / IR Laser) - Tan

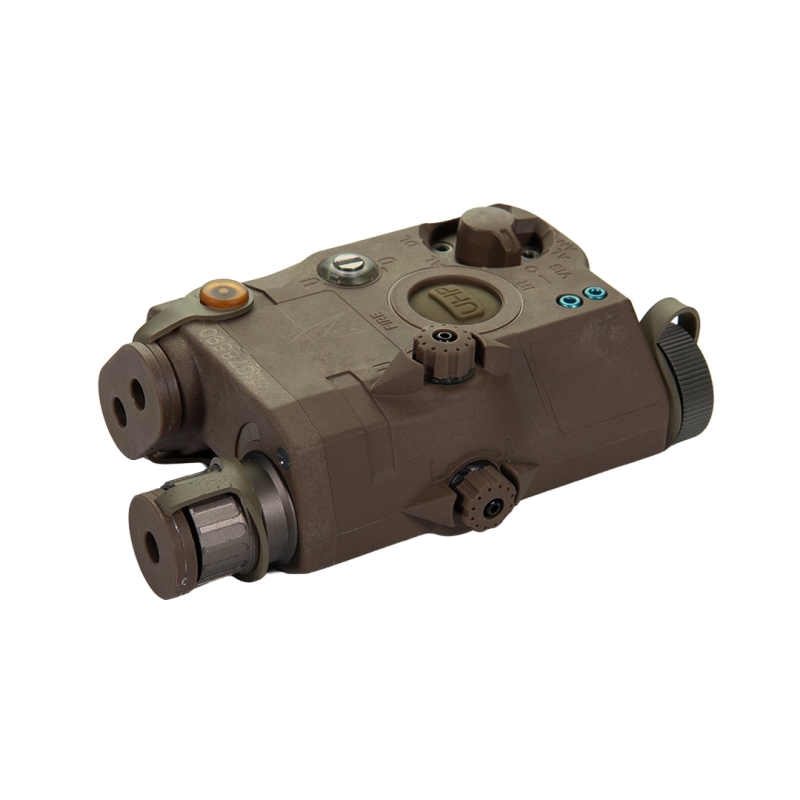

AN/PEQ15 LA5-C ATPIAL by FMA in Dark Earth shell colour.

The ATPIAL version is suitable for real firearms.

Adjustable red laser.

Functional IR illuminator and IR laser designator for NVG.

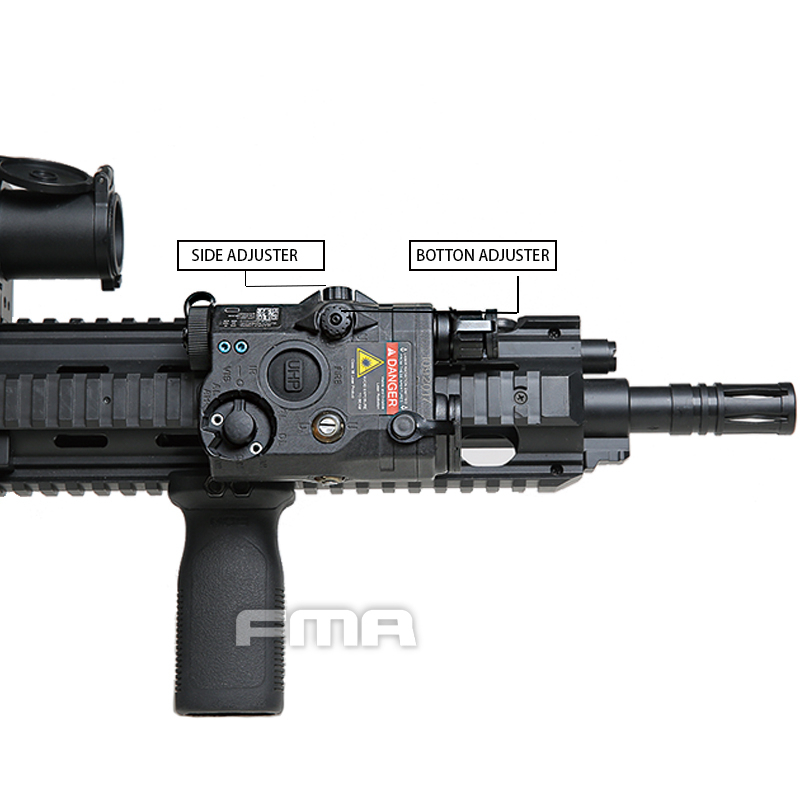

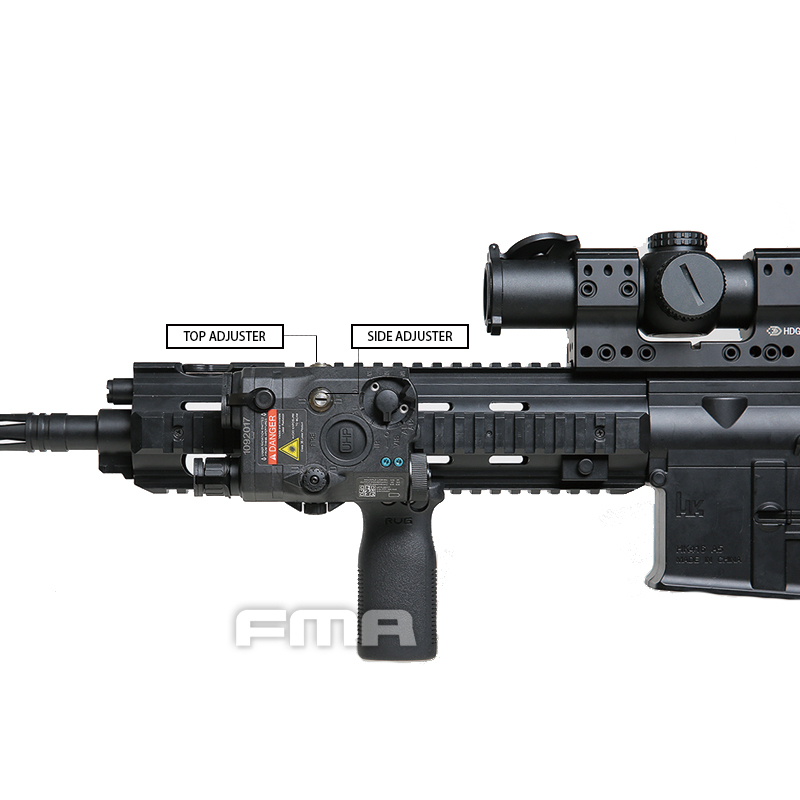

Mounts on RIS rail for weapons like M4, MK18, MP7, CZ EVO, and others.

Powered by 1 CR123 / CR123A battery (not included).

Další varianty

  • Black
    On stock

404,42 € tax incl.

Availability: In Stock

> 5 Items

TB1311-DE

: FMA

By buying this product you can collect up to 99 points.
View loyalty points rules.


Accessories

AN/PEQ15 LA5-C ATPIAL by FMA

AN/PEQ15 LA5-C ATPIAL (Advanced Target Pointer/Illuminator/Aiming Light) is an ultra-powerful version of the compact AN/PEQ-15 laser aiming system, also known as a PEQ box. This device is designed for attachment to a standard 20mm RIS rail and is ideal for professional and tactical use on real firearms, as well as during training and simulation in airsoft.
The box is equipped with an adjustable visible red laser, IR laser designator, and invisible IR illuminator, making it suitable for use with night vision goggles (NVG) during low-visibility operations.
The casing is made of lightweight and highly durable reinforced nylon, ensuring impact resistance and longevity, even with intensive use. The body is much more durable than airsoft versions of FMA’s PEQ boxes.

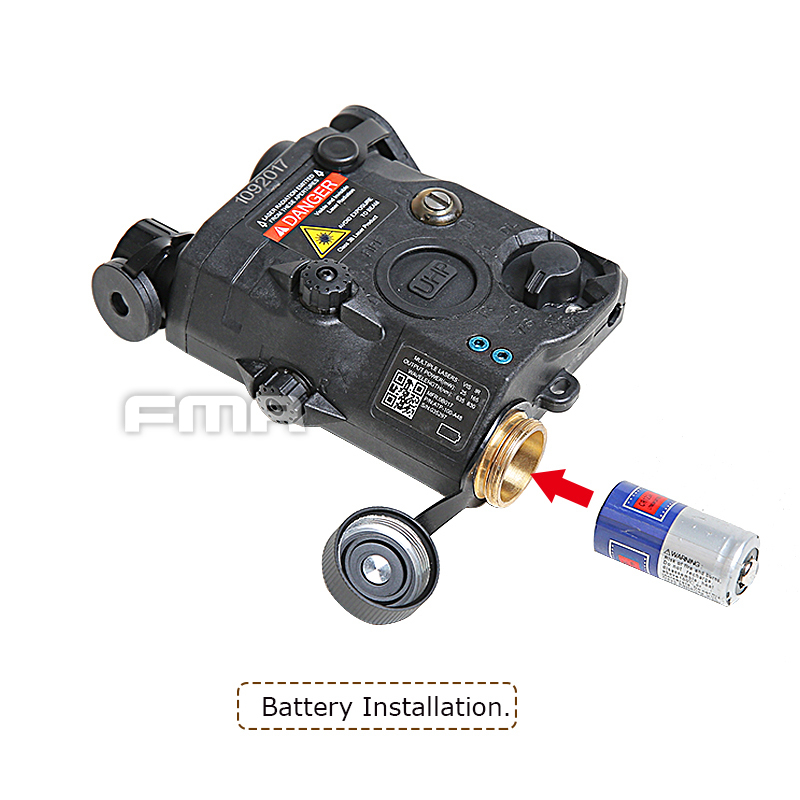

Aiming modes are easily adjustable via ergonomic controls optimized for use with gloves. The battery is located at the rear of the device, allowing for easy replacement without removing it from the rail, preventing loss of zero. Additionally, the device includes a Laser Plug connector for connecting a pressure switch (included) for quick operation without direct contact with the control buttons.

Warning

  • This is a professional laser aiming device, and it must not be aimed at eyes (humans or animals), as it poses a risk of irreversible eye damage.
  • Do not point the laser at the sky or any vehicles.
  • Use only in compliance with applicable legislation regarding laser designators.

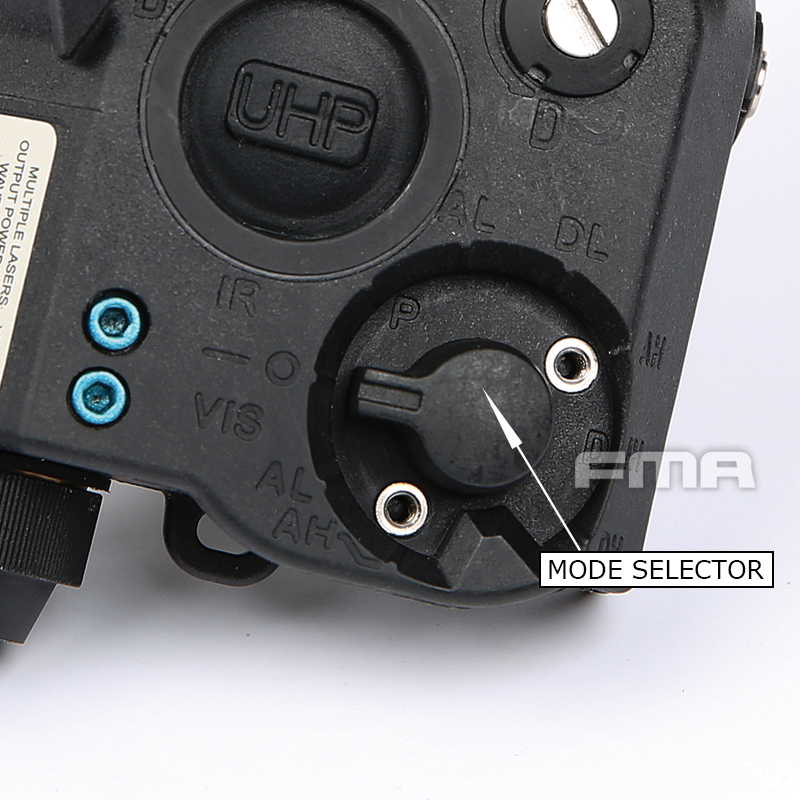

Operating Modes

Switch PositionFunctionPower
AHRed laser (high power)9.0 mW
ALRed laser (low power)2.57 mW
OOff
PProgramming mode
ALIR invisible laser (low power)0.64 mW
DLIR invisible laser and IR illuminator (low power)IR laser 0.64 mW, IR illuminator 2.25 mW
AHIR invisible laser (high power)32.4 mW
IHIR invisible laser and IR illuminator (high power)IR laser 1.71 mW, IR illuminator 61 mW
DHIR invisible laser and IR illuminator (high power)IR laser 32.4 mW, IR illuminator 56 mW

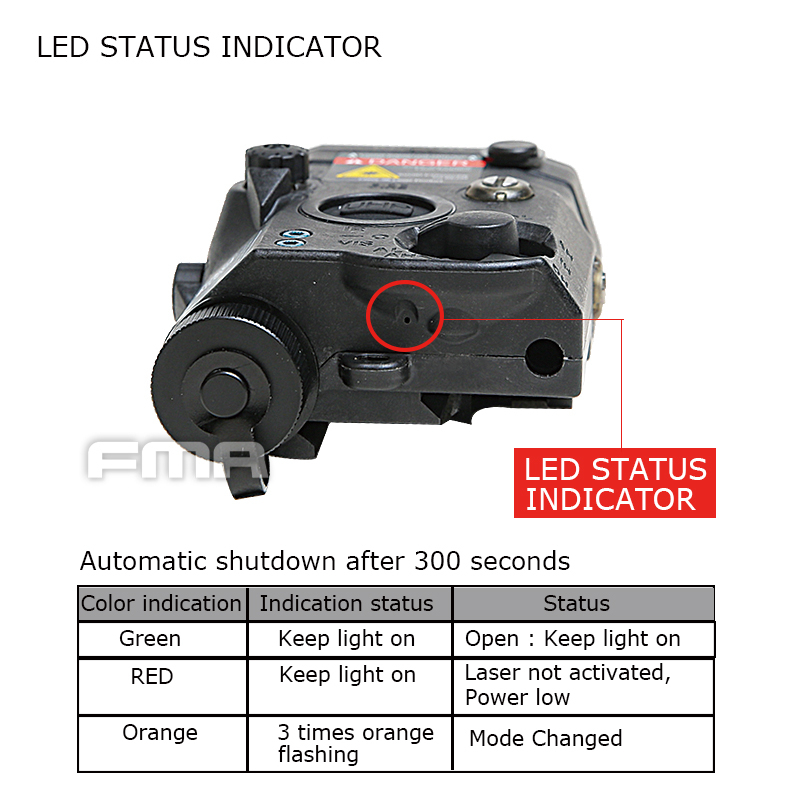

LED Indicator Operation

ColorIndicationStatus
GreenLightAlways on when open
RedLightInactive function or low battery level
OrangeThree orange flashesMode switch

Specifications

  • Size: 116 mm x 71 mm x 40.6 mm
  • Weight: 213 g (with battery)
  • Power supply: 1x CR123A / 16340 (compatible with 3V non-rechargeable and 3.7V rechargeable batteries)
  • Battery life: More than 3 hours (theoretical, at 26°C)
  • Visible laser: Power 2.57 mW (low), 9.0 mW (high)
  • Beam divergence: 0.5 mrad
  • Wavelength: 635 nm
  • IR invisible aiming laser: Power 0.64 mW (low), 32.4 mW (high)
  • IR beam divergence: 0.5 mrad
  • IR wavelength: 835 nm
  • IR invisible illuminator: Power 2.25 mW (low), 50 mW (high)
  • IR illuminator beam divergence: Adjustable from 1 mrad to 105 mrad
  • IR illuminator wavelength: 835 nm

Package Contents

  • AN/PEQ15 LA5-C ATPIAL
  • Pressure switch
  • Stickers
ColorDark Earth (FDE)
Weight (g)213 (g)
Body/receiver materialABS / Plastic
Battery includedNO
  FMA LAB AN/PEQ LA5-C ATPIAL TB1311
