EPeS Hop-up chamber M60 and PKM

EPeS Hop-up Chamber for M60 and PKM introduces a revolutionary design, developed after extensive research, combining high performance with simple control. This version is specifically designed for machine guns A&K M60 (MK43) and PKM with a...
EPeS Hop-up Chamber for M60 and PKM introduces a revolutionary design, developed after extensive research, combining high performance with simple control. This version is specifically designed for machine guns A&K M60 (MK43) and PKM with a brick-type gearbox, such as A&K M60 or M249 for PKM . Fine adjustment of hop-up pressure is possible within a range of 360° using the adjustment wheel , marked for easy orientation. The hop-up chamber is equipped with a perfectly tuned shape of internal seating for the hop-up rubber collar , ensuring successful testing with various hop-up rubbers available on the market (EPeS recommends Maple Leaf rubbers). The chamber is made of aerospace aluminum EN AW 7075-T6 with surface treatment H+PTFE, offering not only high manufacturing quality but also optimal performance. Additionally, it is possible to secure the chamber against rotation directly in the gun body using the included worm. Main Advantages of M60 and PKM Chamber: Designed for machine guns A&K M60 (MK43) and PKM with a brick-type gearbox (A&K M60 or M249 for PKM) Fine adjustment of hop-up pressure - range of the adjustment wheel 360° Marked direction of hop-up regulation Perfectly tuned shape of the internal seating for the hop-up rubber collar - successfully tested with most available hop-up rubbers on the market Construction of seating for AEG hop rubbers with standard collar length (e.g. Systema), for use with a hop-up rubber with a longer collar, use the included spacer - more about the issue of collar length of the hop-up rubber Limitation of play of the hop-up chamber in the gearbox hole using the included O-rings of two sizes Vertically seated pressure of the hop-up rubber - works great with Maple Leaf hop-up rubbers Groove in the top of the hop-up chamber for the possibility of fixing in the outer barrel assembly Exchangeable pin for axial locking of the hop-up chamber in the feeder - if necessary, a longer pin (for PKM) can be installed to ensure a perfect fit. Made of aerospace aluminum EN AW 7075-T6 with surface treatment H+PTFE Made in the Czech Republic Package Contents: Hop-up chamber Adjustment ring for hop-up pressure Flush press roller of the hop-up 2× safety O-ring of the adjustment ring (9×1.5) 2× O-ring for limiting play of the chamber in the gearbox hole (6×1 and 9×1) 2× spacer for the collar of the hop-up rubber (0.1 + 0.2 mm) Fixing worms for fixing the barrel in the hop-up chamber (belong to the top and bottom holes in the groove)
More

44,53 € tax incl.

Availability: In Stock

3 Items

E350-M60

: EPeS

By buying this product you can collect up to 11 points.
View loyalty points rules.


Accessories

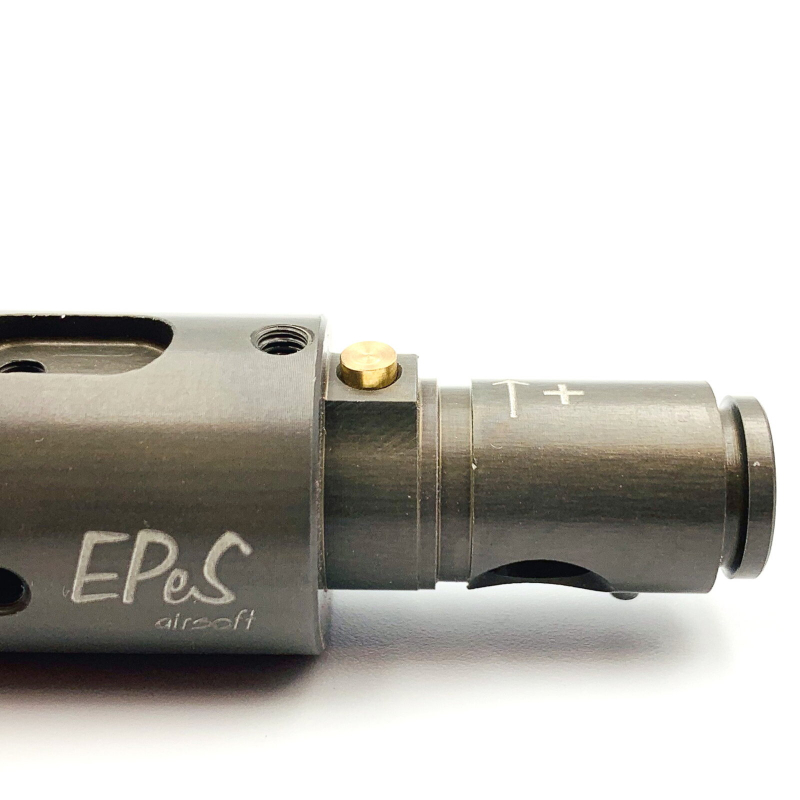

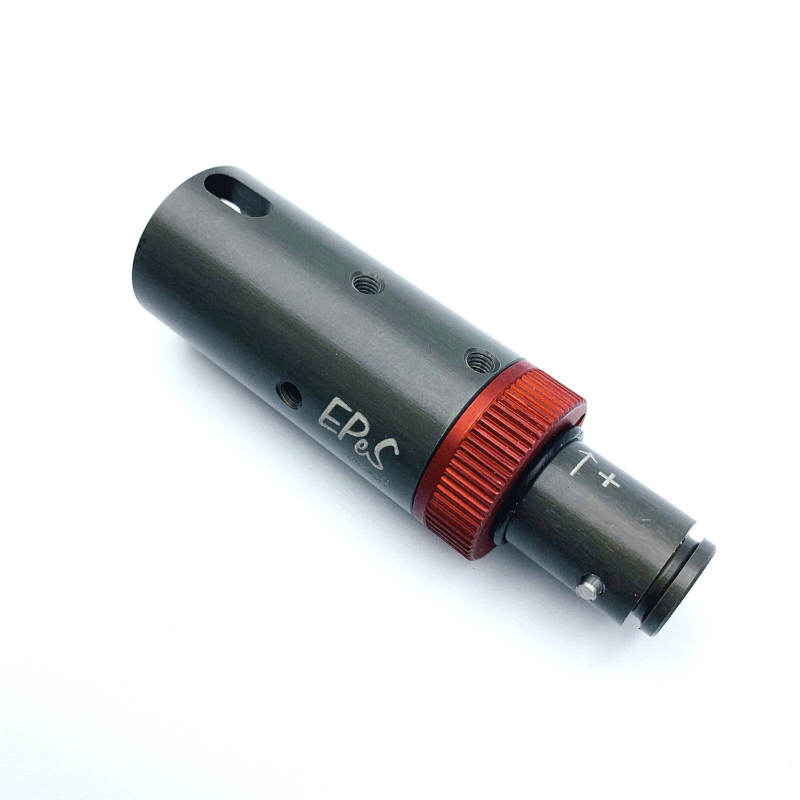

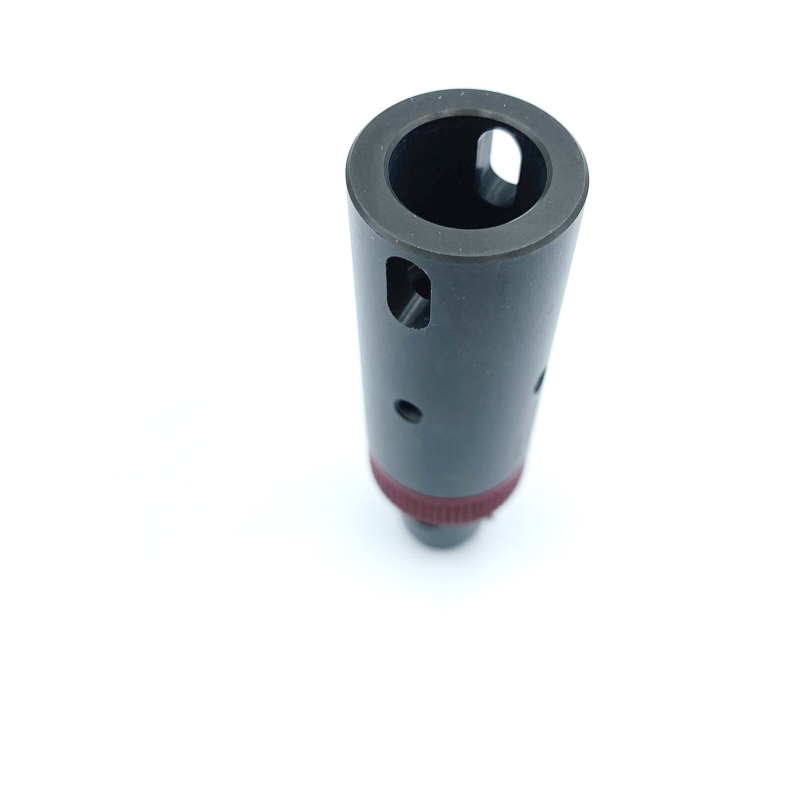

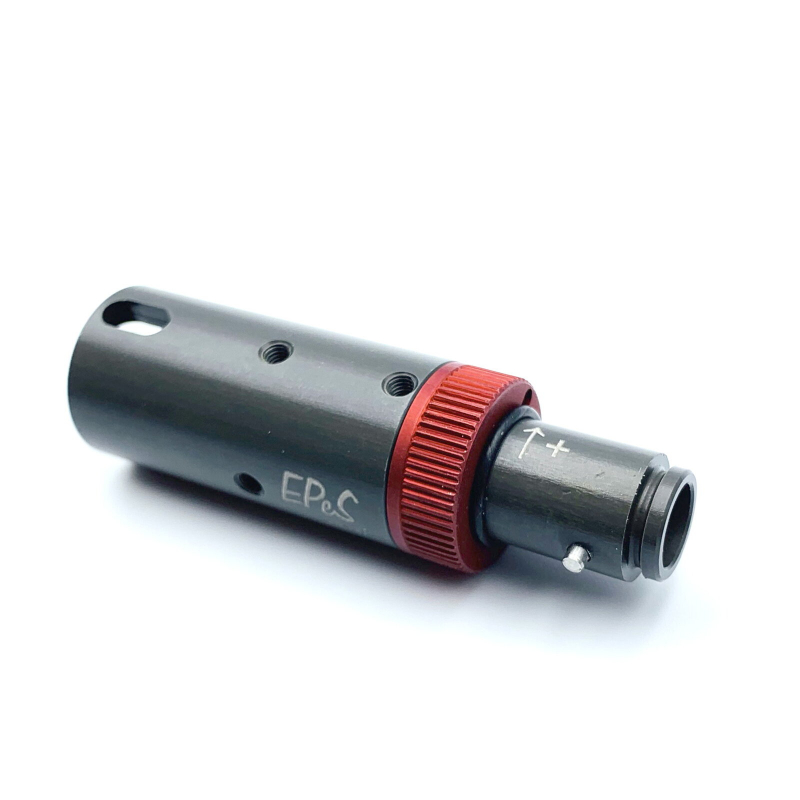

EPeS Hop-up Chamber for M60 and PKM introduces a revolutionary design, developed after extensive research, combining high performance with simple control. This version is specifically designed for machine guns A&K M60 (MK43) and PKM with a brick-type gearbox, such as A&K M60 or M249 for PKM.
Fine adjustment of hop-up pressure is possible within a range of 360° using the adjustment wheel, marked for easy orientation. The hop-up chamber is equipped with a perfectly tuned shape of internal seating for the hop-up rubber collar, ensuring successful testing with various hop-up rubbers available on the market (EPeS recommends Maple Leaf rubbers).
The chamber is made of aerospace aluminum EN AW 7075-T6 with surface treatment H+PTFE, offering not only high manufacturing quality but also optimal performance.

Additionally, it is possible to secure the chamber against rotation directly in the gun body using the included worm.

Main Advantages of M60 and PKM Chamber:

  • Designed for machine guns A&K M60 (MK43) and PKM with a brick-type gearbox (A&K M60 or M249 for PKM)
  • Fine adjustment of hop-up pressure - range of the adjustment wheel 360°
  • Marked direction of hop-up regulation
  • Perfectly tuned shape of the internal seating for the hop-up rubber collar - successfully tested with most available hop-up rubbers on the market
  • Construction of seating for AEG hop rubbers with standard collar length (e.g. Systema), for use with a hop-up rubber with a longer collar, use the included spacer - more about the issue of collar length of the hop-up rubber
  • Limitation of play of the hop-up chamber in the gearbox hole using the included O-rings of two sizes
  • Vertically seated pressure of the hop-up rubber - works great with Maple Leaf hop-up rubbers
  • Groove in the top of the hop-up chamber for the possibility of fixing in the outer barrel assembly
  • Exchangeable pin for axial locking of the hop-up chamber in the feeder - if necessary, a longer pin (for PKM) can be installed to ensure a perfect fit.
  • Made of aerospace aluminum EN AW 7075-T6 with surface treatment H+PTFE
  • Made in the Czech Republic

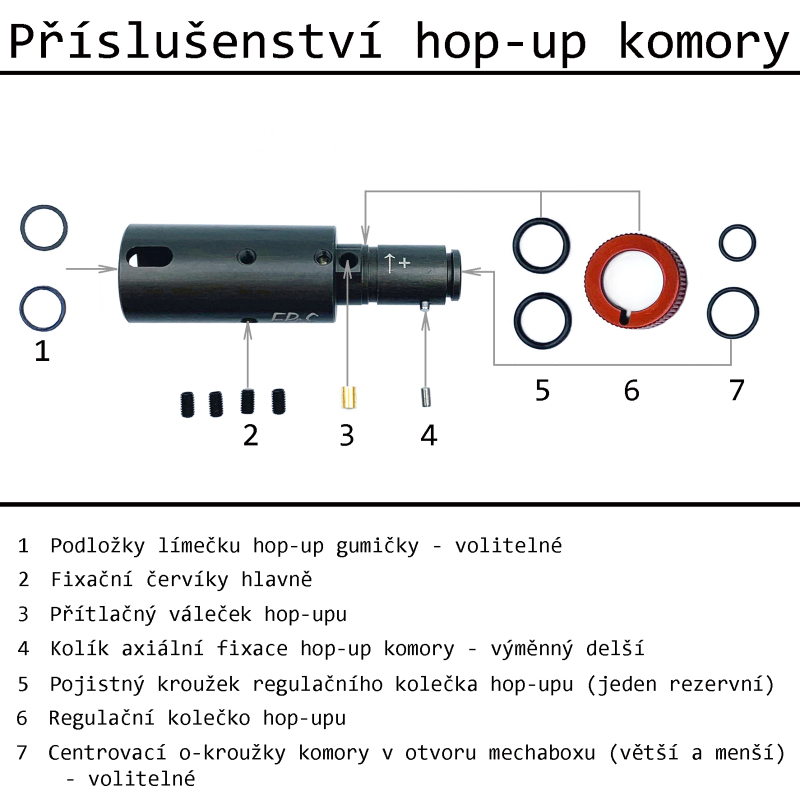

Package Contents:

  • Hop-up chamber
  • Adjustment ring for hop-up pressure
  • Flush press roller of the hop-up
  • 2× safety O-ring of the adjustment ring (9×1.5)
  • 2× O-ring for limiting play of the chamber in the gearbox hole (6×1 and 9×1)
  • 2× spacer for the collar of the hop-up rubber (0.1 + 0.2 mm)
  • Fixing worms for fixing the barrel in the hop-up chamber (belong to the top and bottom holes in the groove)

ColorGrey
Body/receiver materialMetal
