Arcturus samopal PPK20M1 FE™ M-LOK / RIS - Black

PPK20M1 FE™ by Arcturus

PPK20M1 FE™ by Arcturus is a high-end airsoft SMG from the latest K9 2024 series, combining cutting-edge technology with the modernized PPK20 submachine gun design. Thanks to its precision engineering and robust construction, it offers outstanding performance straight out of the box. The body is made from stamped steel with QPQ surface treatment, ensuring high durability and longevity. In short, it's a solid piece of steel, far superior to competitors using alloy bodies.

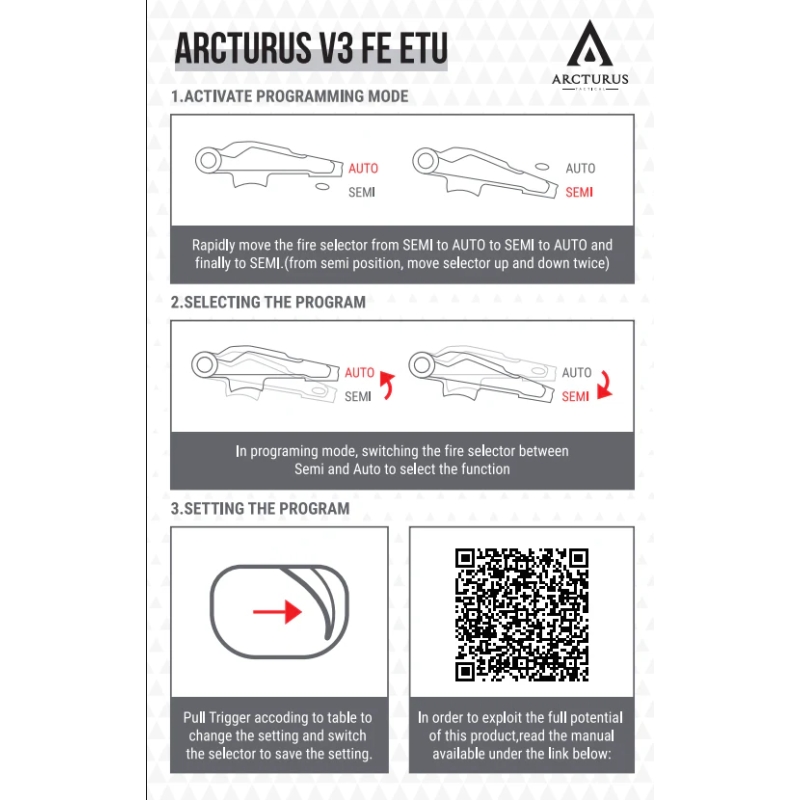

Arcturus guns are not only great on the outside, but the internals are top-notch too. This submachine gun is equipped with a high-tech ARC FE electronic trigger unit (ETU), allowing fire mode programming (Semi, 3rd Burst, Binary, Full Auto) and pre-cocking (pre-cocking) for an ultra-fast trigger response. Additionally, it features an active brake that prevents unnecessary piston movement after firing. The ETU also provides over-voltage protection and low battery warning.

Internal components

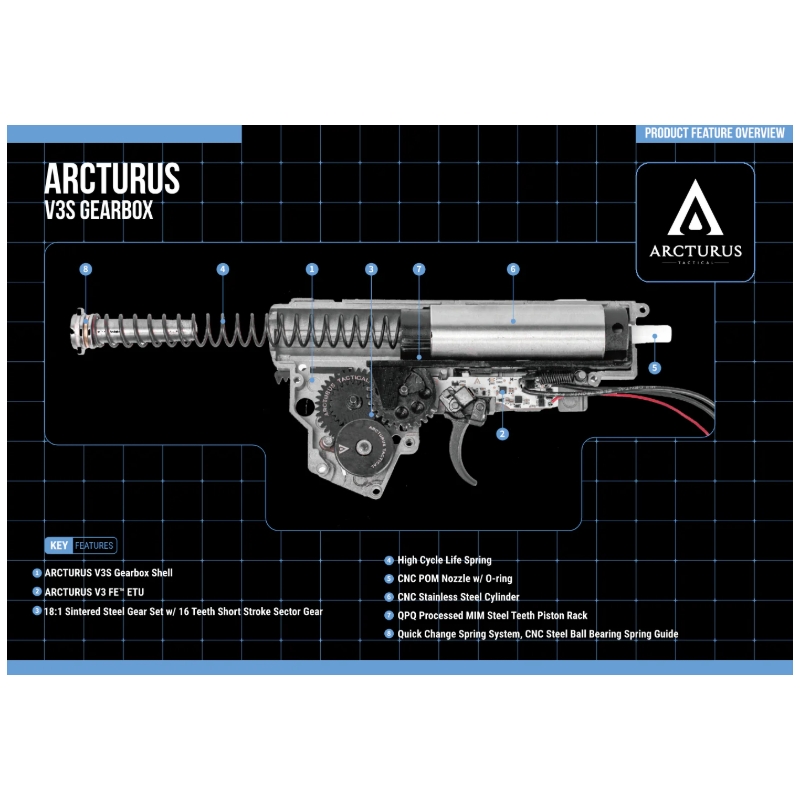

Inside, there is an upgraded V3 gearbox with quick spring change (QSC), allowing easy power adjustment for different airsoft events.
The gearbox features CNC machined steel gears in an 18:1 ratio with short-stroke 16:1 modification and a high-performance 24k 21TPA neodymium motor.
The hop-up is an ARCTURUS RS™ rotary polymer chamber, providing precise BB trajectory adjustment. The internal 6.03 mm precision barrel is 200 mm long, making it ideal for close-quarters combat (CQB) and vehicle crews.

External build

The gun’s body is made from stamped steel with a QPQ surface finish, protecting it from corrosion and wear. It features a durable M-LOK handguard with bottom and top RIS rails. The top cover also has a RIS rail for mounting optics.

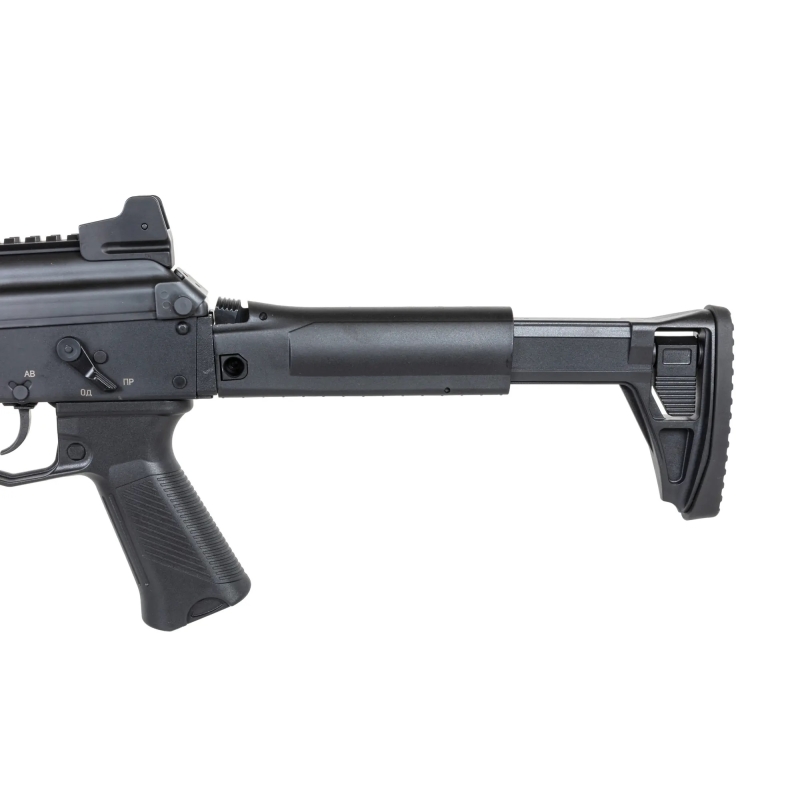

The foldable telescopic stock is made of reinforced nylon polymer, reducing the weapon’s overall weight without compromising strength. The flash hider can be easily swapped thanks to the 14-mm CCW left-hand thread.

Key Features

• Steel body: Stamped steel with QPQ coating for maximum durability.
• Electronic unit (ETU): Programmable trigger, active braking, and over-voltage protection.
• 21TPA neodymium motor: High torque for fast trigger response.
• Steel gears 18:1: CNC machined for maximum precision and longevity.
• RIS system: Allows mounting of optics, flashlights, and other accessories.
• Quick spring change: Easy power adjustment without disassembling the gearbox.
• Variable capacity magazine: Switchable between realistic 30 rounds and skirmish-friendly 95 BBs.

Technical Specifications

• Power source: AEG
• Material: Steel, aluminum, polymer
• Magazine capacity: 30 (Real-Cap) / 95 BBs (Mid-Cap)
• Weapon length: 415 – 676 mm
• Weight: 2927 g
• Muzzle velocity: 105 m/s
• Inner barrel length: 200 mm
• Inner barrel diameter: 6.03 mm
• Hop-up: Adjustable
• Fire modes: Semi, 3rd Burst, Binary, Full Auto, Pre-cocking
• Recommended battery: 7.4V / 11.1V Li-ion/Li-pol (not included)
• Connector: T-Dean (under the top cover)
• Recommended battery type: Stick

Package Contents

• PPK20M1 FE™
• ARCTURUS PP19-01 Vityaz 30/95 BB magazine
• Adapter (T-Dean - small Tamiya)
• Cleaning rod
• Stickers and patches
• User manual
