GATE / Solink G5 Smart Brushless Motor, 46 RPM - Long

G5 SMART Programmable Brushless Motor 46000 RPM by GATE / Solink in purple.

Long shaft for V2 gearboxes (M4 / MK18 / HK416, etc.).

Brushless motor with programmable settings via the GCS mobile app (Gate Control Station).

Compatible with GATE TITAN II and ASTER II Bluetooth® units.

RPM range from 10,000 to 46,000 RPM.

183,68 € tax incl.

Availability: In Stock

5 Items

SBM-G5

: GATE

By buying this product you can collect up to 44 points.
View loyalty points rules.


Accessories

  • 531,41 € In Stock
    Free shipping

    : GATE

    EON-CGB2-FR

    Complete V2 mechabox EON in the design from the well-known company GATE? YES! Finally, a upgrade set for AEG M4/16 and other weapons with V2 mechabox is ready. It is a CNC mechabox EON with TITAN II Bluetooth unit assembled from the best that GATE offers. The resulting performance is approximately 140 m/s, which is 1.9J. GATE - Gateway to the new...

    531,41 €
    In Stock
    Add to cart
  • 93,68 € In Stock

    : GATE

    ABT2-R

    Processor unit ASTER V2 SE Expert Module included with the Quantum 2A1 trigger from GATE! Enhance the performance of your airsoft rifle, including M4, HK416, SCAR, and other rifles with a V2 gearbox. Set sensitivity with up to 470 levels, burst fire, RoF, DMR mode, and other details. ASTER and the Quantum 2 Trigger deliver maximum performance for your...

    93,68 €
    In Stock
    Add to cart

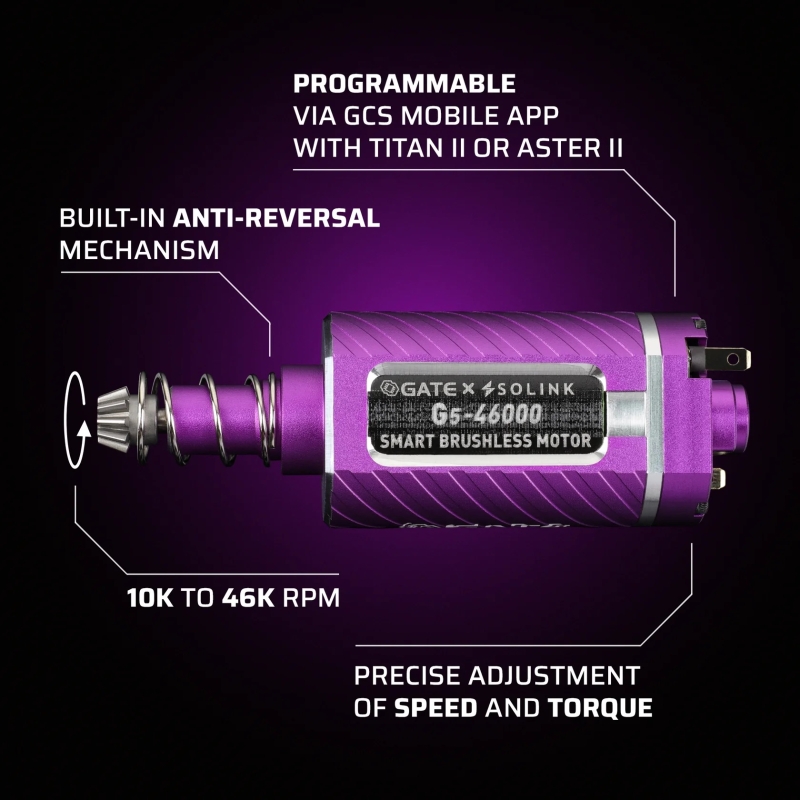

G5 SMART Programmable Brushless Motor by GATE / Solink

The G5 SMART Brushless Motor by GATE in collaboration with Solink is the world's first brushless motor that can be programmed via the GCS mobile app (Gate Control Station for Android and iOS). This allows for precise adjustment of motor speed from 10,000 to 46,000 RPM and customization of torque to fit your gearbox configuration.
A unique feature is the integrated anti-reversal mechanism (prevents reverse movement), so you don’t need to install an anti-reversal latch. This ensures quieter gear operation and more precise pre-cocking settings.
The motor offers Soft Start mode for gearbox protection and Fast Start mode for instant trigger response. Its high efficiency reduces battery consumption and prevents motor overheating.

Key Features

  • Programmable: Adjustable settings via the GCS mobile app
  • Anti-reversal mechanism: Ensures quieter operation and more precise pre-cocking
  • Highly durable connectors: Designed for long-term reliability
  • CNC-machined motor shaft for maximum precision
  • High braking power for efficient gearbox control
  • D-type pinion gear: Standard compatibility

Technical Specifications

  • Operating voltage: 6 – 16.8 V
  • Dimensions: 88.5 x 29.5 x 25 mm
  • Weight: 141 g
  • No-load current draw: 3.2 A (at 45,800 RPM)
  • Maximum efficiency: 75.9%
  • Maximum power output: 519 W
  • Torque: 2334 g/cm
  • RPM range: 10,000 – 46,000 RPM

Programming Compatibility

  • Smart programming functions supported by: TITAN II Bluetooth, ASTER II Bluetooth by GATE
  • Standard use as a brushless motor (without RPM settings): ASTER SE for V2, ASTER SX for V2, TITAN V2 (1st gen), JeffTron Leviathan (enable Brushless mode), T238, and other V2 ETU units

Package Contents

  • G5 SMART Programmable Brushless Motor
ColorViolet / Purple
Weight (g)140 (g)
Body/receiver materialMetal
